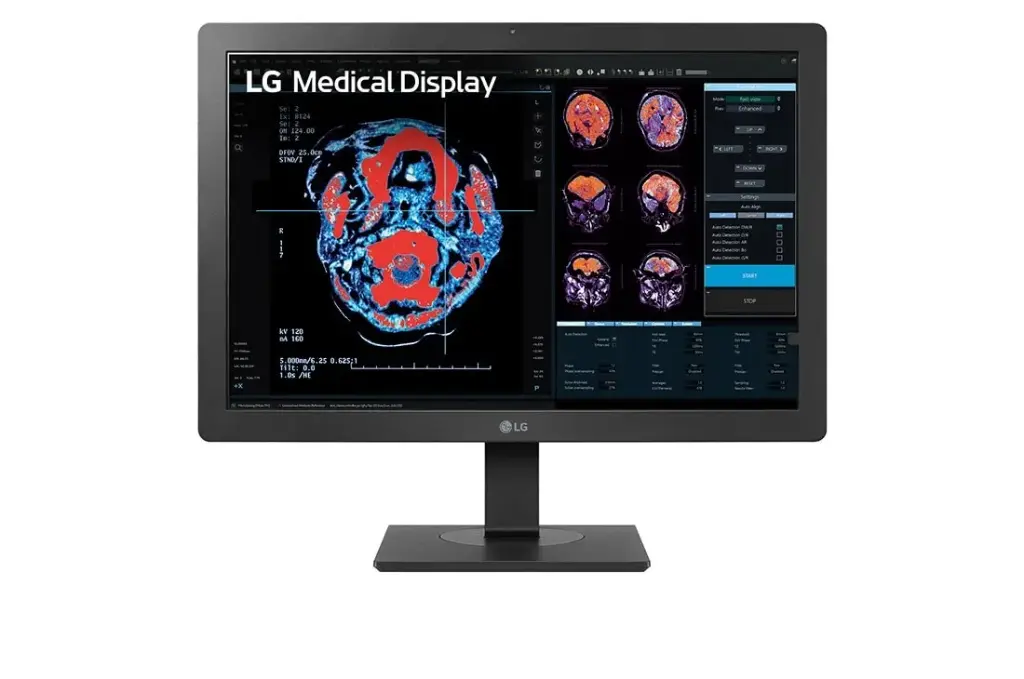

24HR513C-LG 24” 2MP IPS Clinical Review Monitor
- 24-inch 2MP (1920x1200) IPS Display
- 600cd/m² Brightness (Typ.)
- Internal Front Calibration Sensor
- Focus View Mode / Pathology Mode
- Daisy Chain
- Bi-directional Auto Pivot
24” 2MP Clinical review monitor
Clinical review and Diagnosis in one
display
Multi-purpose
600cd/m² Brightness (Typ.)
Internal Front Calibration Sensor
Efficiency
Management with LCS Medical
Daisy Chain
Convenience
Variety of interfaces including HDMI
Ergonomic Design

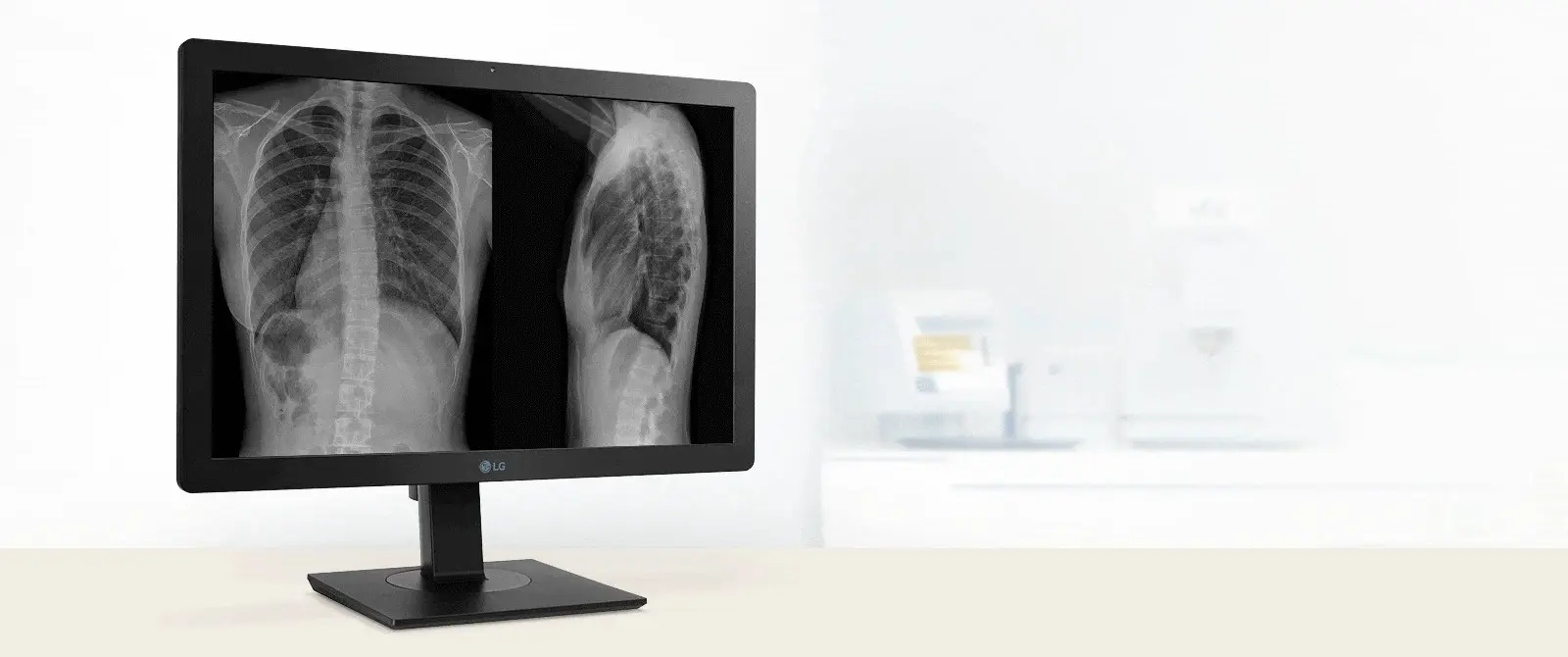

Multi-purpose
600cd/m² Brightness (Typ.)
High brightness suitable for Diagnosis
With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes, meeting the ACR standards for diagnostic monitors.
*According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m².
*This display is not intended for mammography.

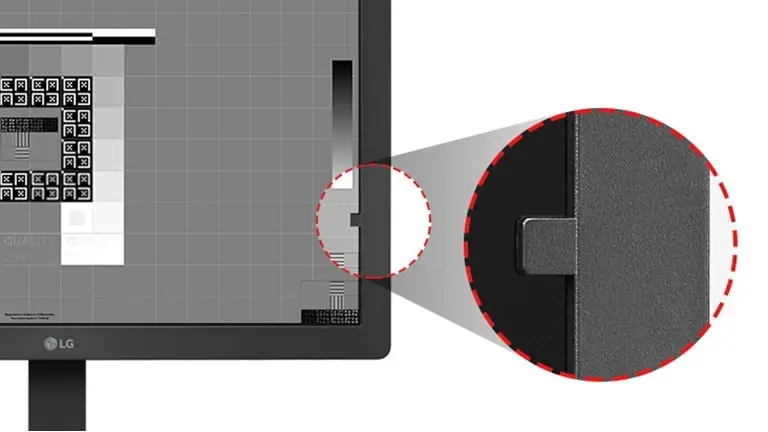

Internal front calibration sensor
Consistency in medical images
The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

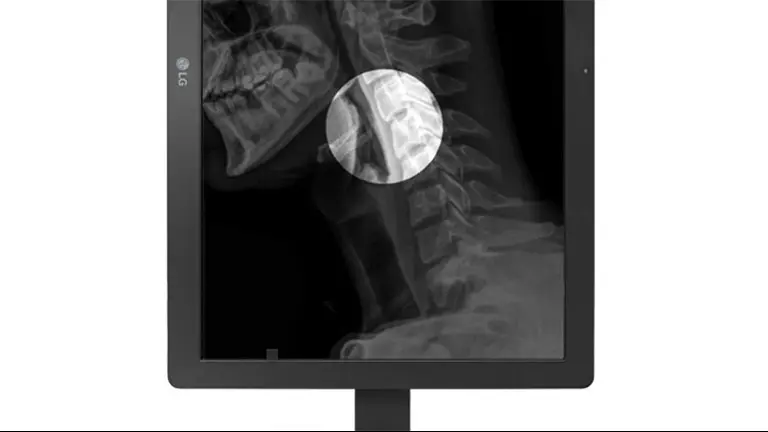

Focus view mode
Focus on the region of interest
24HR513C features the Focus view mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

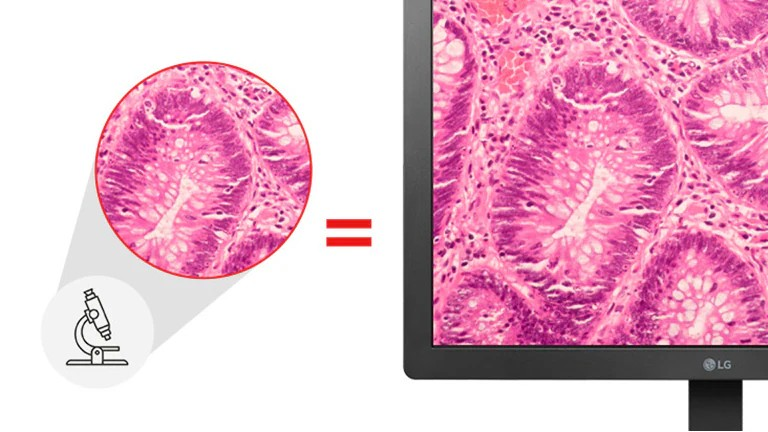

Pathology mode
Just like looking at a microscope
With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Streamlined and efficient
workflow

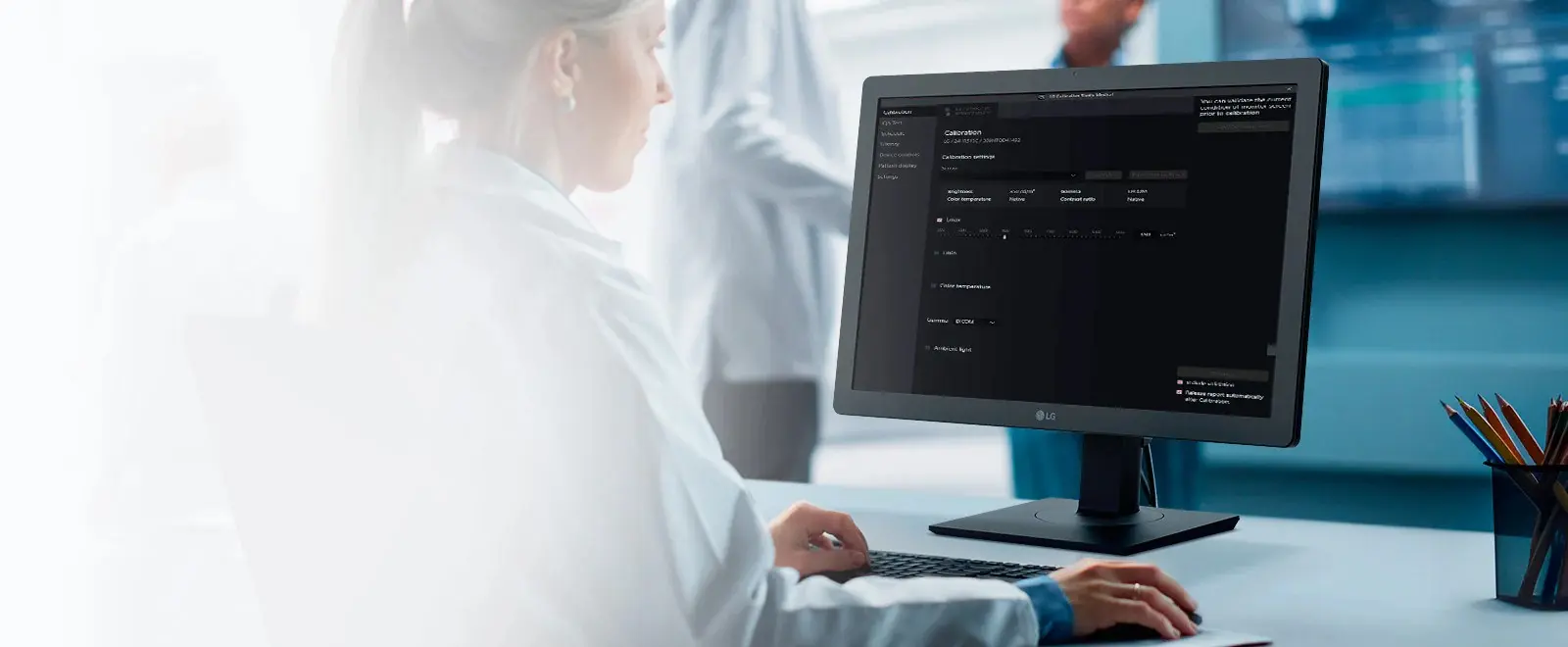

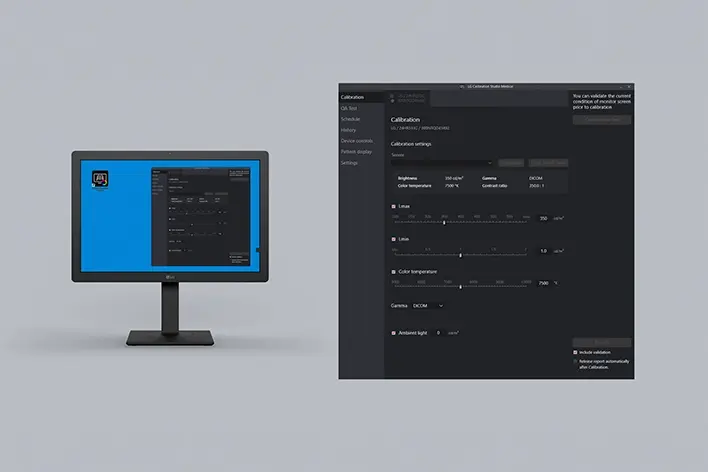

LCS Medical*
Convenient calibration and QA test
Conveniently manage 24HR513C with LCS Medical. With calibration complying with DICOM Part
14, this software enables precise and consistent display of medical images. It also supports Quality
Assurance Tests conforming to international QC Standards*.

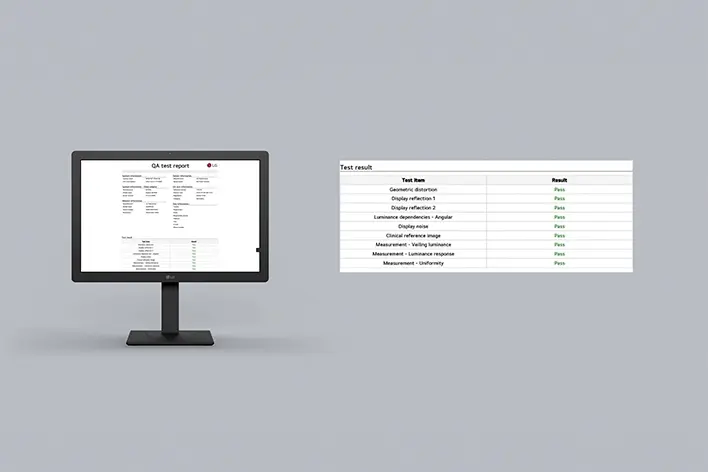

Calibration
QA Test
*LCS Medical : LG Studio Calibration Medical
*LCS Medical supports Quality Assurance Tests that comply with international QC Standards including AAPM TG18, ACR, DIN-6868-157, IEC 62563-1, NYC PDM, JESRA X-0093, and RANZCR.
Daisy Chain
Simple connection for a clutter-
free workspace

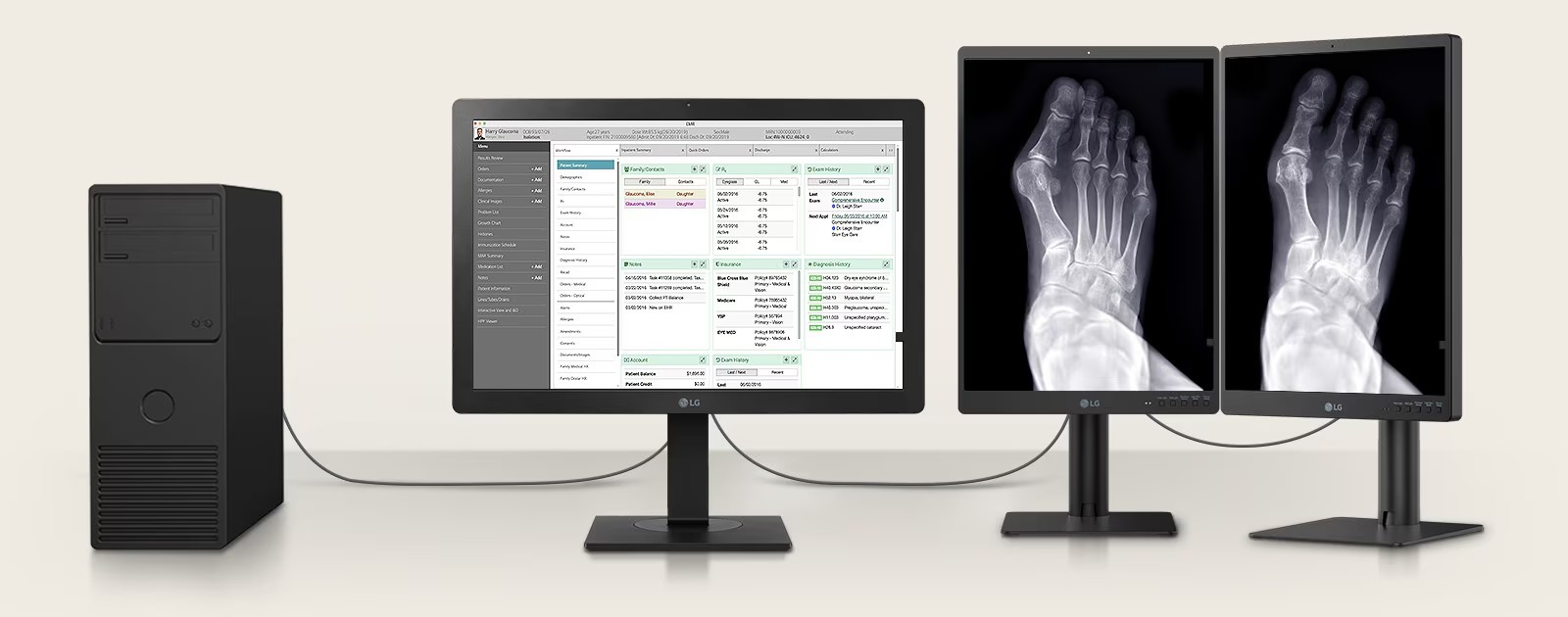

Make your workspace productive with Daisy Chain Setup. You can connect a 24HR513C with two
*3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two
3MP monitors.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*The 3MP diagnostic monitor featured in the image is 21HQ513D.
User convenience
Versatile connectivity
Variety of interfaces, including
an HDMI Port
With HDMI, DisplayPort, and DVI-D input terminals, 24HR513C guarantees compatibility with a
wide range of interfaces, enhancing user convenience.

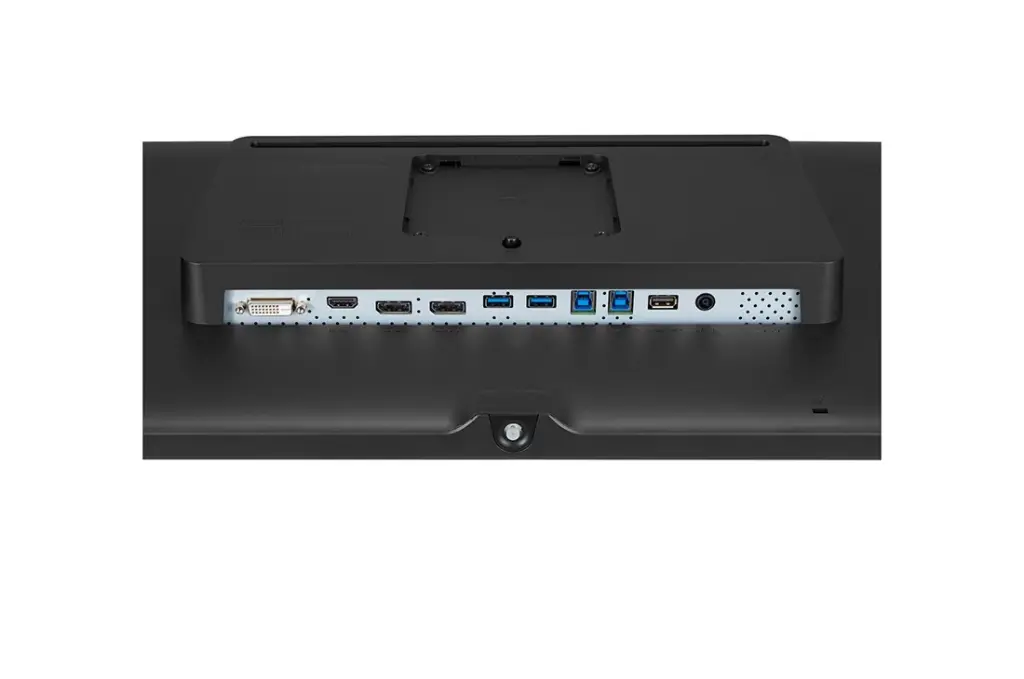

1. DVI IN / 2. HDMI™ / 3. DisplayPort x 2 / 4. USB 3.0 Downstream x 2 / 5. USB 3.0 Upstream x 2

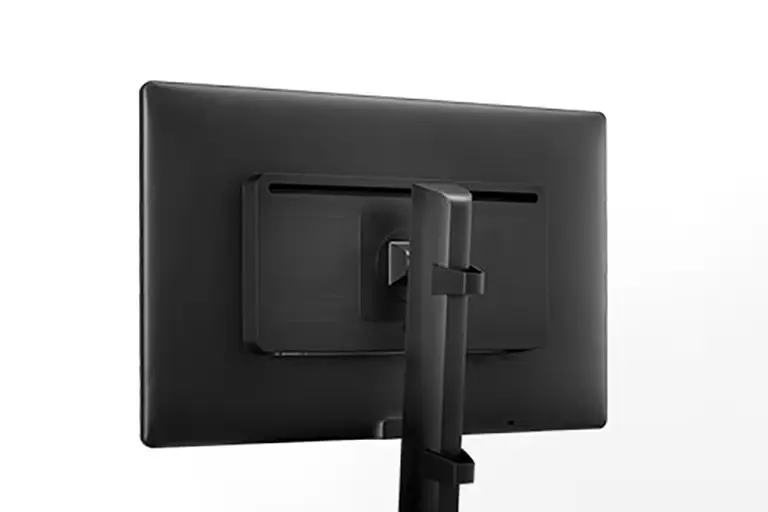

Ergonomic design
Customizable workstation for
enhanced usability
24HR513C is designed to be adjustable for the posture of users' image review. The One-Click Stand
makes the installation process simple. The ergonomically designed stand allows users to freely
adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added
flexibility.

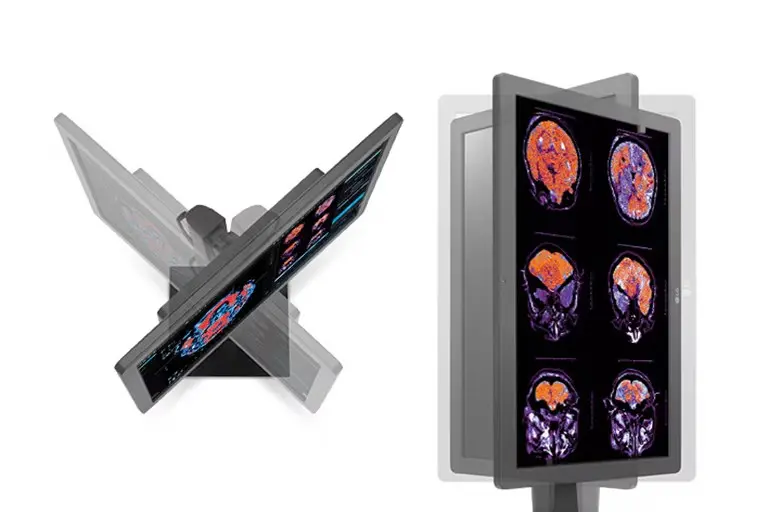

Bi-directional Auto Pivot
Bi-directional Auto Pivot

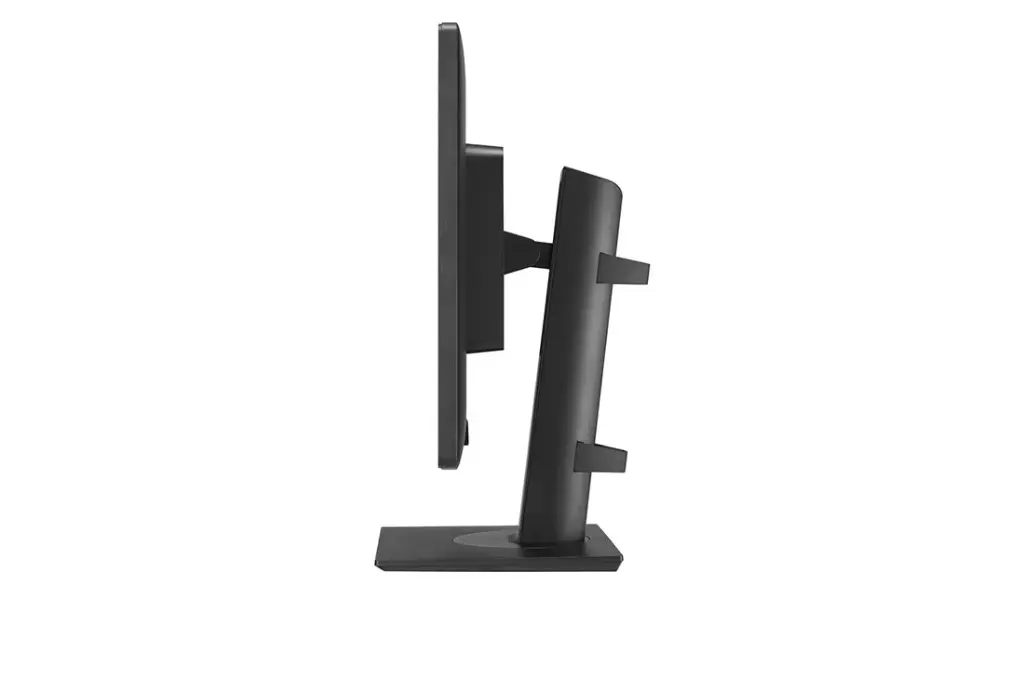

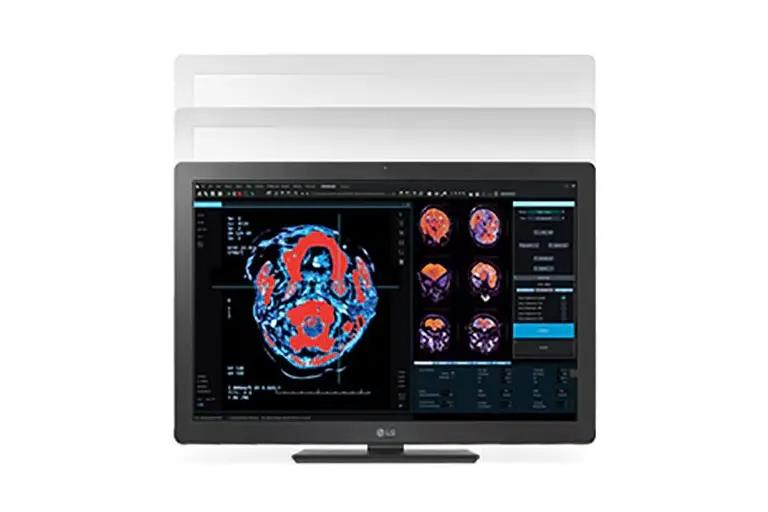

Height 0 ~ 150mm

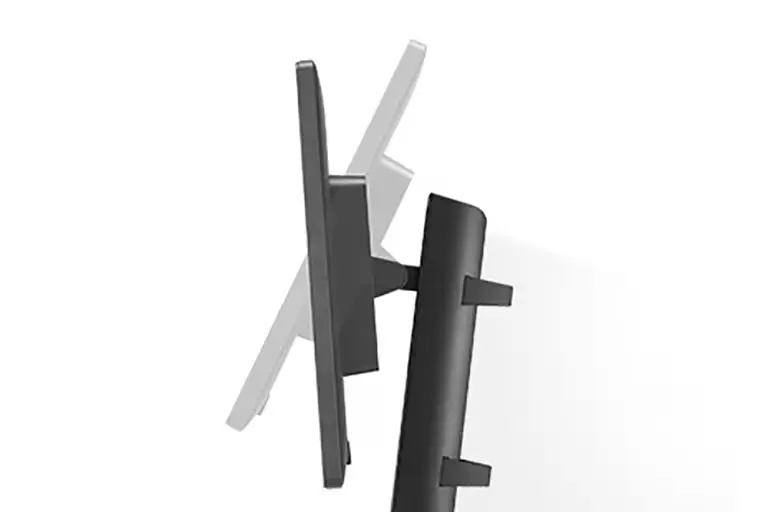

Tilt -5 ~ 25°

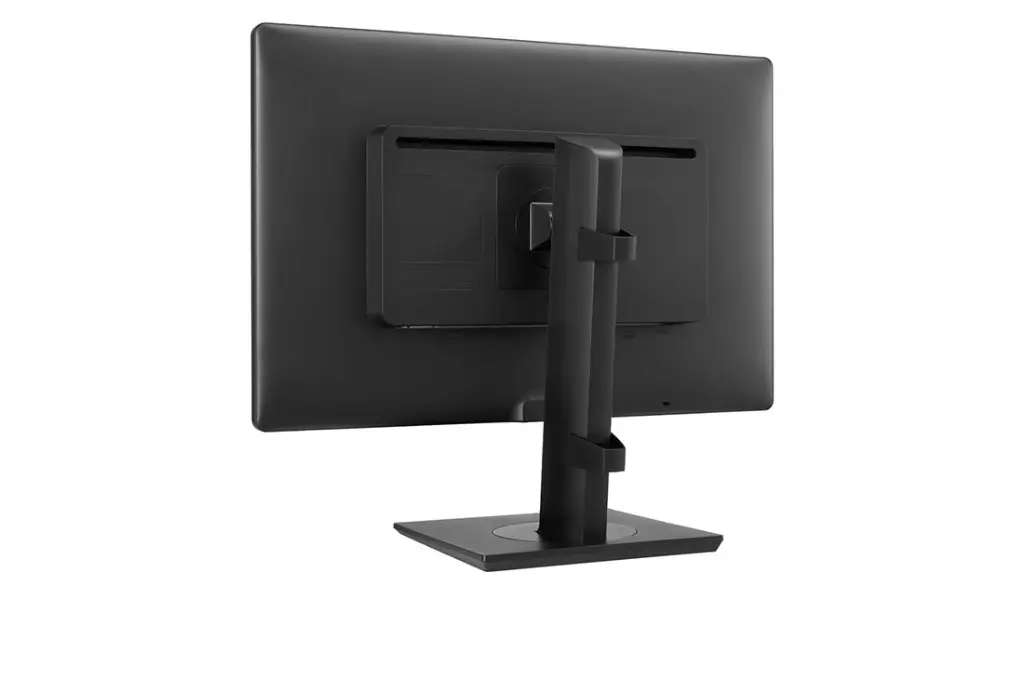

The One-Click Stand
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*Auto Pivot refers to the automatic screen rotation function based on the pivot direction.

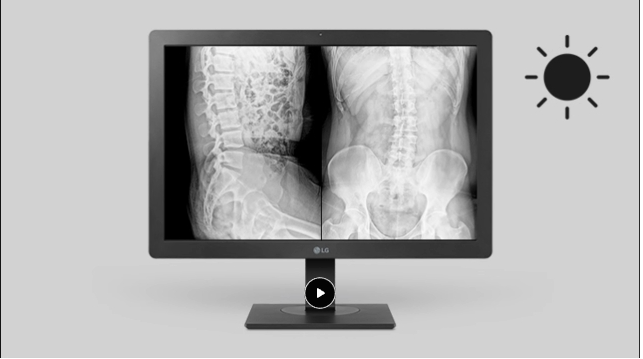

Auto luminance sensor
Automatically adjusts screen
brightness

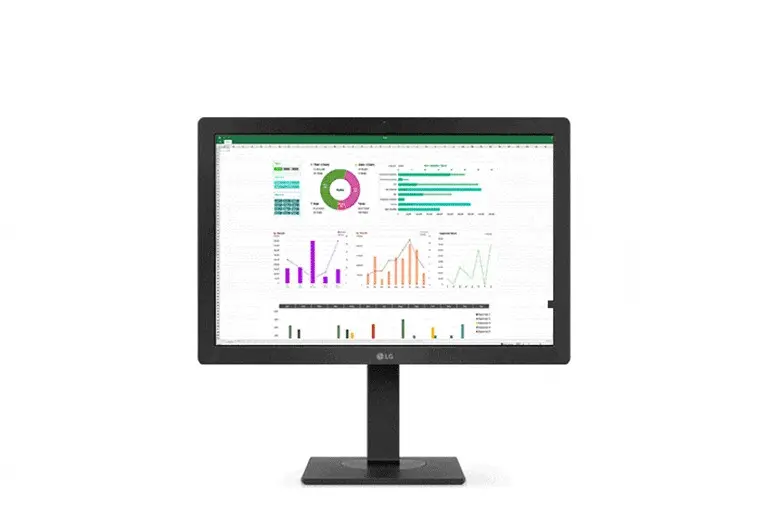

24HR513C features an Auto luminance sensor which sets screen brightness properly
for the ambient lighting.
