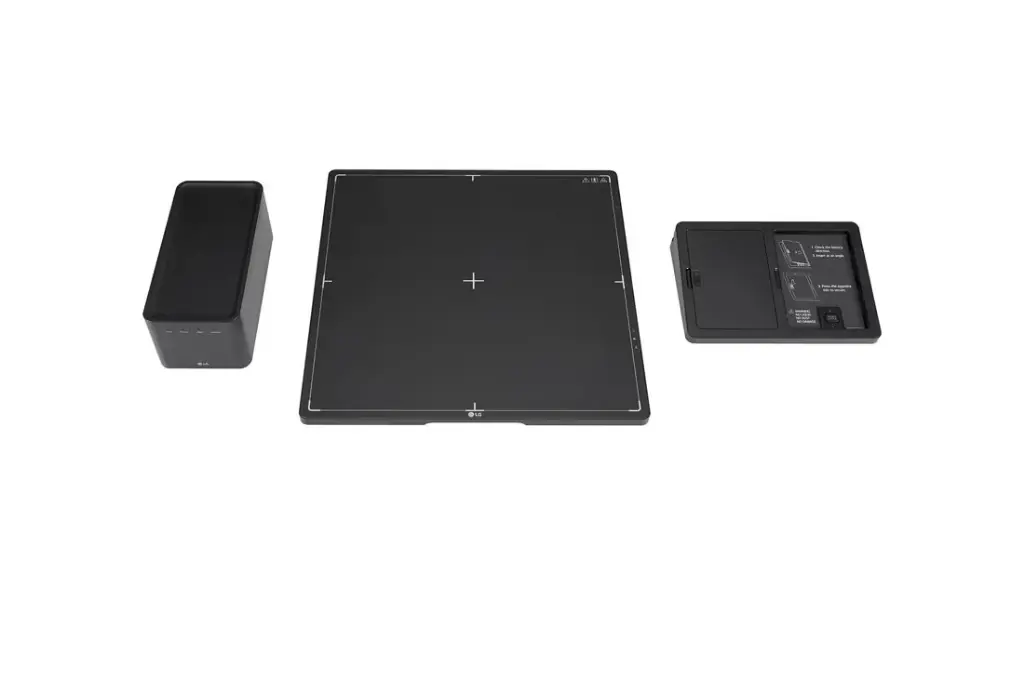

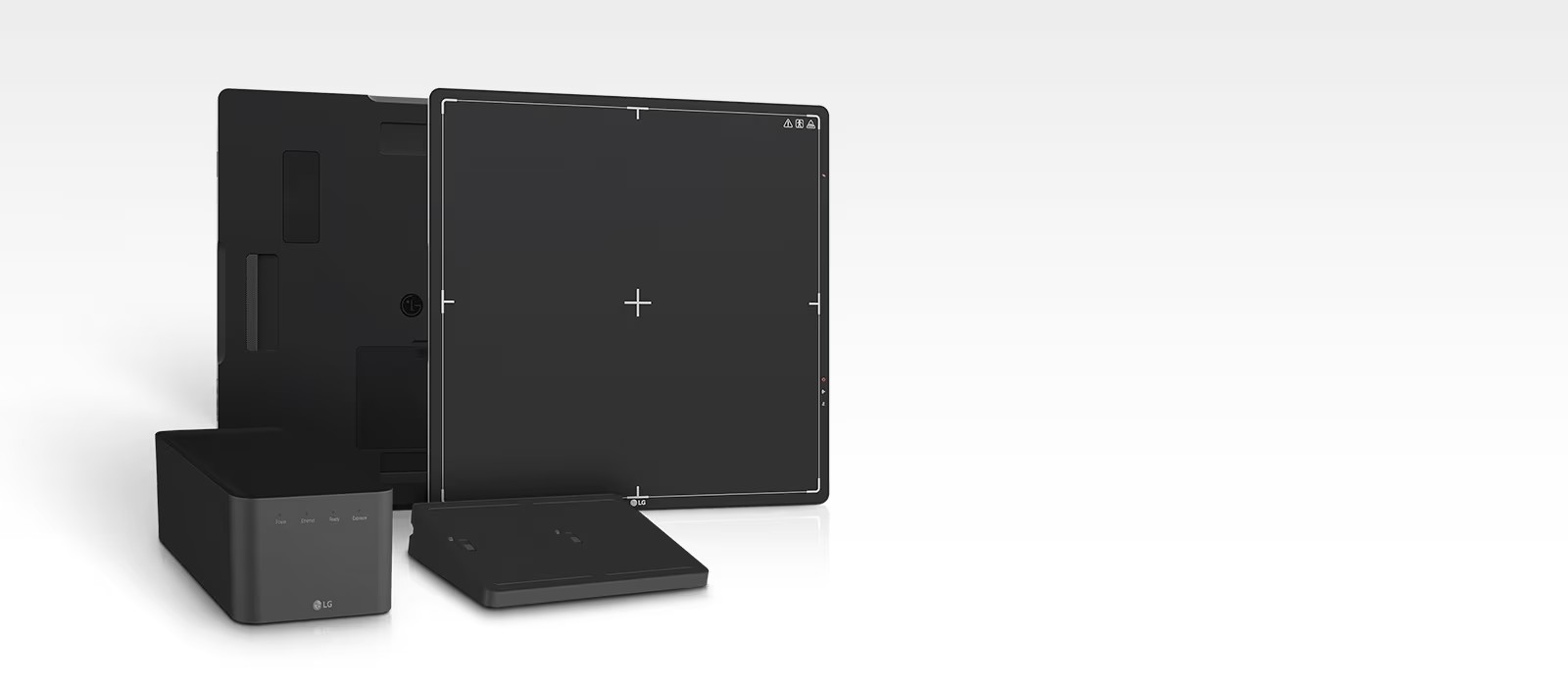

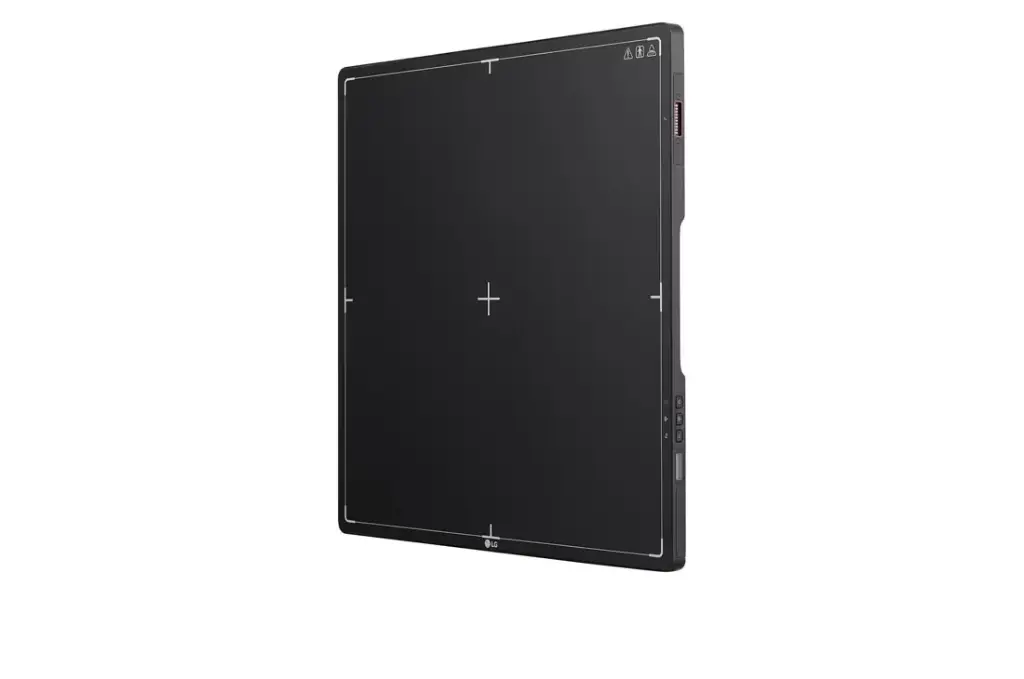

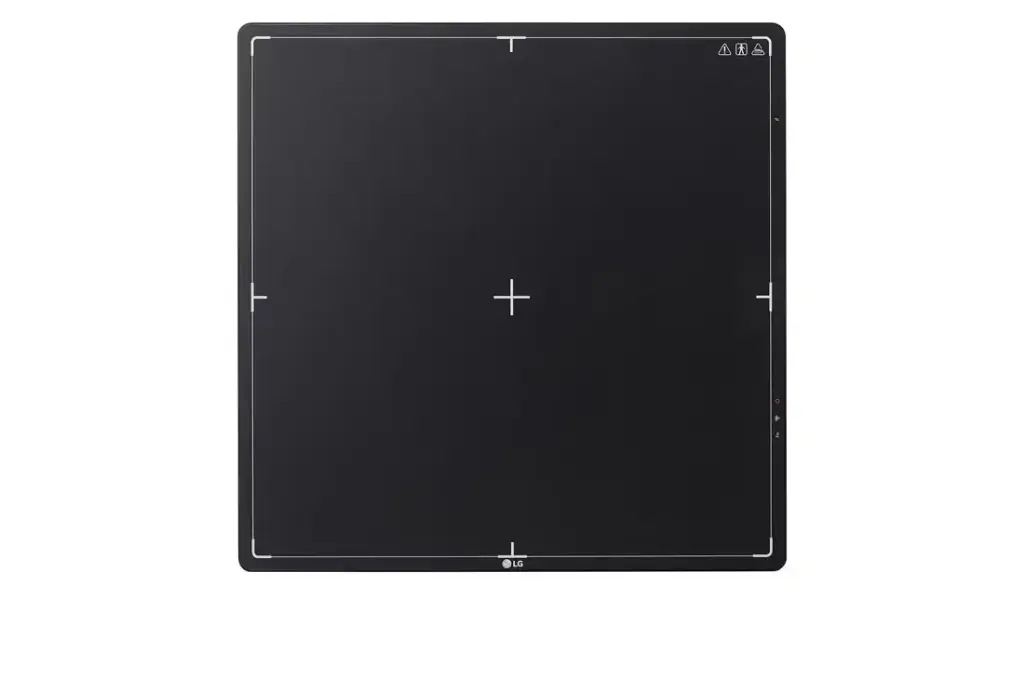

17HQ701G-LG Digital X-ray Detector with a-Si TFT
- 140㎛ pixel size
- 16bit A/D conversion
- IP68, Magnesium & Carbon-fiber Body
- Raw Image in 1.5 sec.(Wired) / 2.5 sec.(Wireless)
- Max. Uniform Load : 400kg / Max. Point Load : 200kg
LG Digital X-ray Detector with a-Si TFT
Amorphous Silicon TFT
Get Clear Images

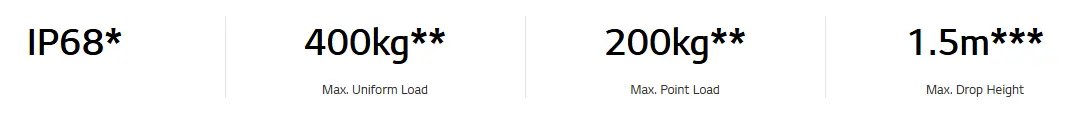

Durable Design
*IP68 includes Solids Level 6 (Dust-tight: no ingress of dust, and Liquid Level 8.
*Tested under controlled laboratory conditions with an IP68 rating. Water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet.
**Maximum total uniform load and maximum point load when tested for 60 seconds.
***IEC 60601-1 drop test in a controlled laboratory environment can differ from actual usage situation.
****All images are shown for illustrative purposes only, and may vary from the actual product/usage.
*****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
Efficient Portability
Carbon & Magnesium Body

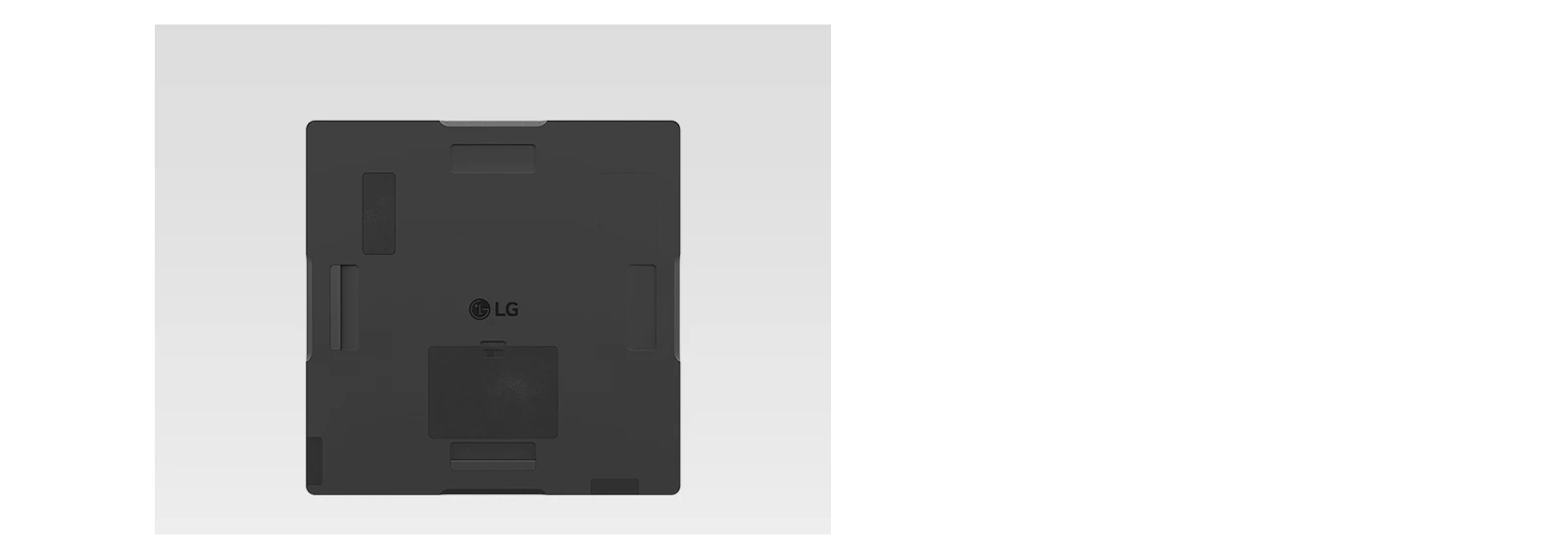

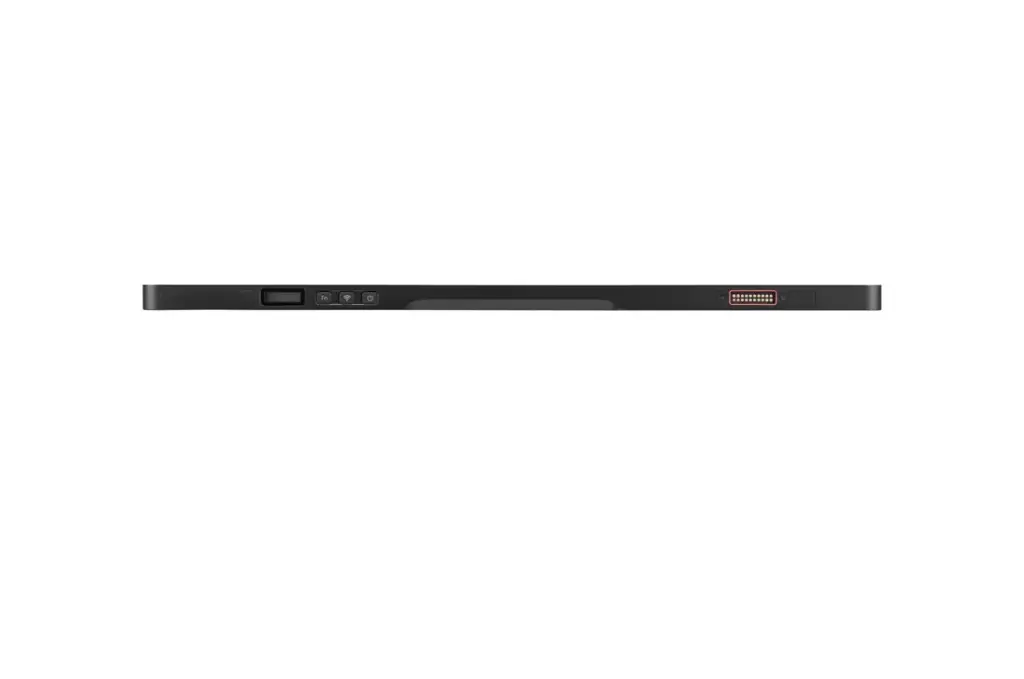

Light-weight Body (3.7kg (8.2 lbs)) with 4-side Chamfer
Uninterrupted Use for Extended
Operating Times
Long-lasting Battery Up to 7.5 Hours
*300 shots / 7.5 hours under conditions of cycle time 90 sec.
**Actual battery usage time and performance may vary depending on network connectivity and application use.
***All images are shown for illustrative purposes only, and may vary from the actual product/usage.
****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

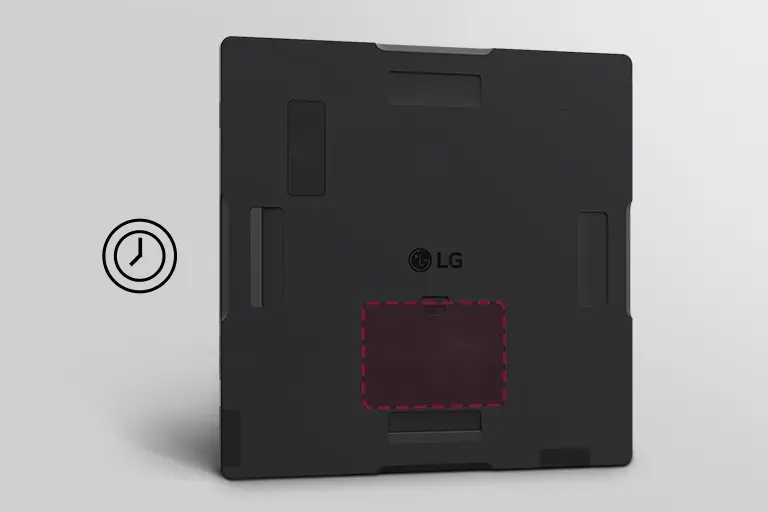

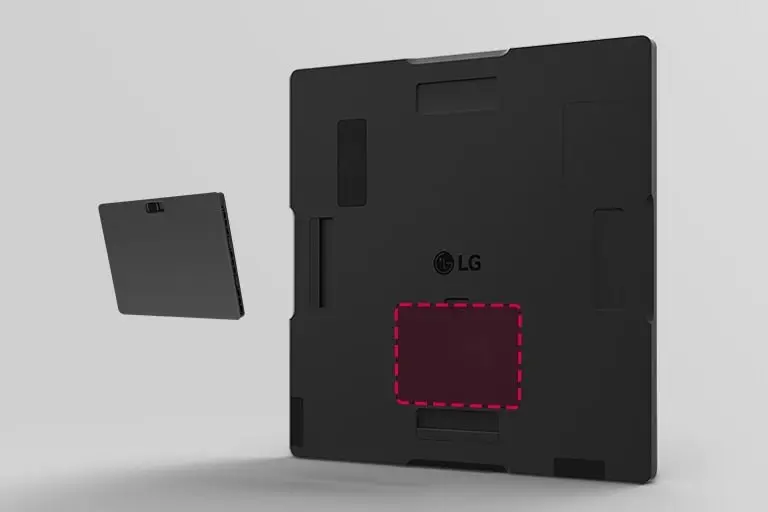

Hot Swap Up to 1min.

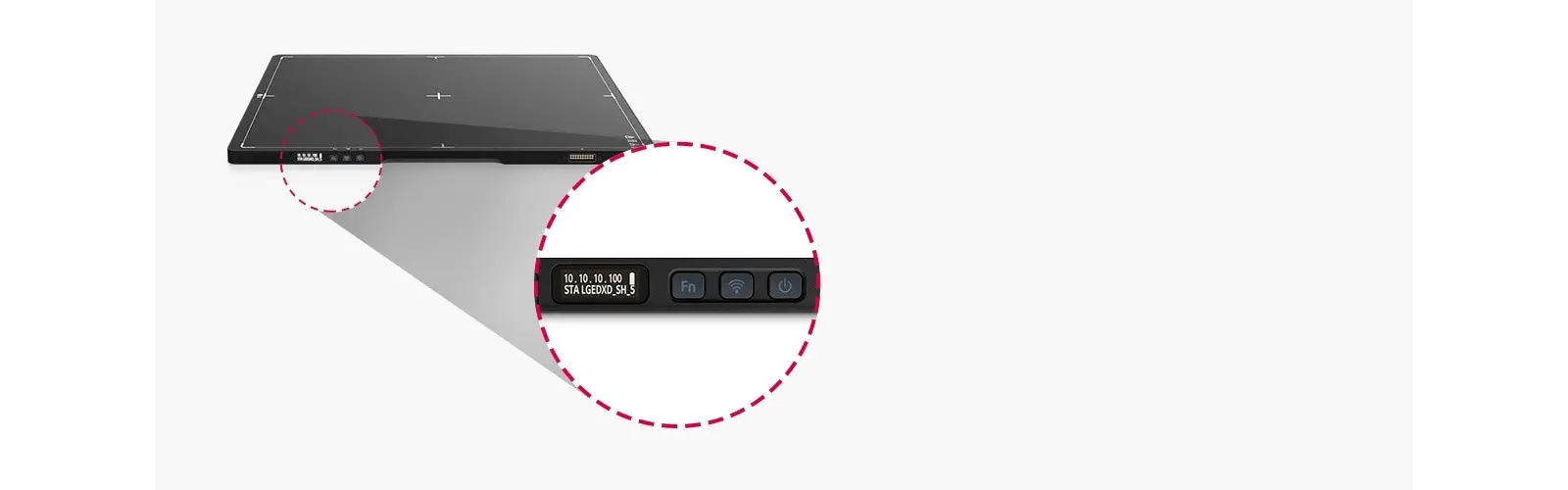

Upgraded Convenience
